Norsonic Nor145 Sound Level Meter

Powerful measurement platform configurable for environmental and building acoustics and a huge range of sound and vibration applications.

FEATURES & BENEFITS

  • BS EN IEC 61672 Class 1 and PTB Tested with Standard and Outdoor Microphones
  • Can be configured as a fully-featured environmental noise analyser.
  • Can be configured for sound insulation testing, building acoustics and room acoustics.
  • Measures and Logs Leq, Lmax, Lmin, SEL and 8 end-user defined Percentiles
  • Three Simultaneous Time Profiles e.g. 1 hour, 15 minutes and 10msec
  • 1/1 and 1/3 Octaves (down to 0.4Hz)

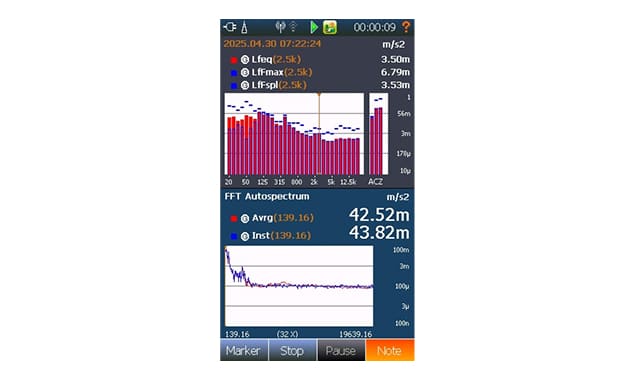

  • 16000 line zoomable FFT (simultaneously with 1/1/ or 1/3 octaves) option available
  • Audio Recording – 12 or 48 kHz sample rate, 8, 16 or 24 bit with selectable gain
  • Audio playback via headphones
  • Speech Intelligibility (STIPA)

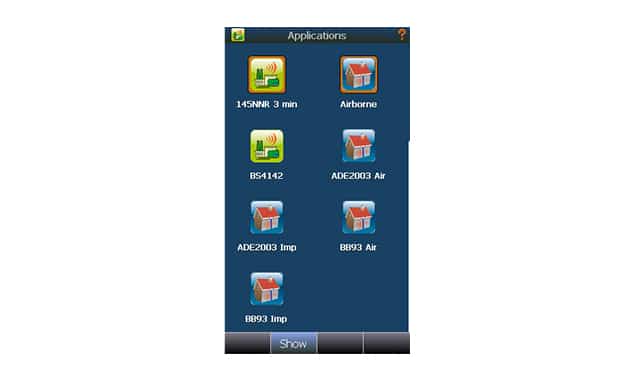

  • Save Setups as Apps for rapid preparation for even complex repeated measurement exercises.
  • Large (512GB+) Micro SD Memory Capacity
  • Easy connection to NorCloud for powerful live to web/remote monitoring and control.
  • Multiple Nor145s can be controlled and the measurements analysed with Nor850.
  • Can be used with Norsonic Noise Compass – identifies sound arrival direction.
  • Ultrasound option with 3 rd octaves up to 40kHz and 96 kHz audio recording.
  • High noise level option can measure up to 163 dB.
  • Low noise level options
  • Vibration measurement option
  • Full suite of software for environmental sound, building acoustics & room acoustics available

PRINCIPAL APPLICATIONS

  • Environmental Noise
    Measurements
  • Speech Intelligibility
  • Compliance Monitoring
  • Aircraft Noise
  • Ultrasound
  • Remote/Live Monitoring
  • Building & Room Acoustics
  • Baseline Noise
    Measurements
  • Low Level Noise
  • Automotive Sound
  • High Level Noise
  • Sound Arrival Direction
  • BS 4142
  • Low Frequency Noise
  • Road & Railway Noise
  • Sound Insultation Testing
  • Test & Measurement
  • Vibration

Product Description

The Nor145 is a sound and vibration analysis platform in the form of a convenient, hand-held sound level analyser. There are a huge range of available optional features but some are quite niche and unlikely to be regularly required by most practitioners. The Nor145 Packages offer all the features likely to be required for Environmental Sound and/or Building & Room Acoustics.

Practitioners can purchase the Environmental Sound Package, The Building and Room Acoustics Package or the combination of these two in the Comprehensive Consultant’s Package and know that all the main bases of their measurement requirements for Environmental Sound and/or Building and Room Acoustics are covered. It’s important to note that these packages don’t just provide basic functionality. The functionality of both the Environmental Sound and Building and Room Acoustics Packages are incredibly comprehensive and advanced.

With all main bases covered, it’s great to know that if an unusual measurement requirement arises it is likely that there is an additional Nor145 available to cover it.

If you are looking for a sound level analyser specifically to tackle an unusual problem the Nor145 is probably the solution you are looking for. Examples include ultrasound (up to 40 kHz), infrasound (down to 0.4 Hz), high level noise (up to 163 dB), low level noise, discriminating between sound based on arrival direction. If you need Sound Intensity the dual channel Nor150 is currently the only portable solution on the market.
