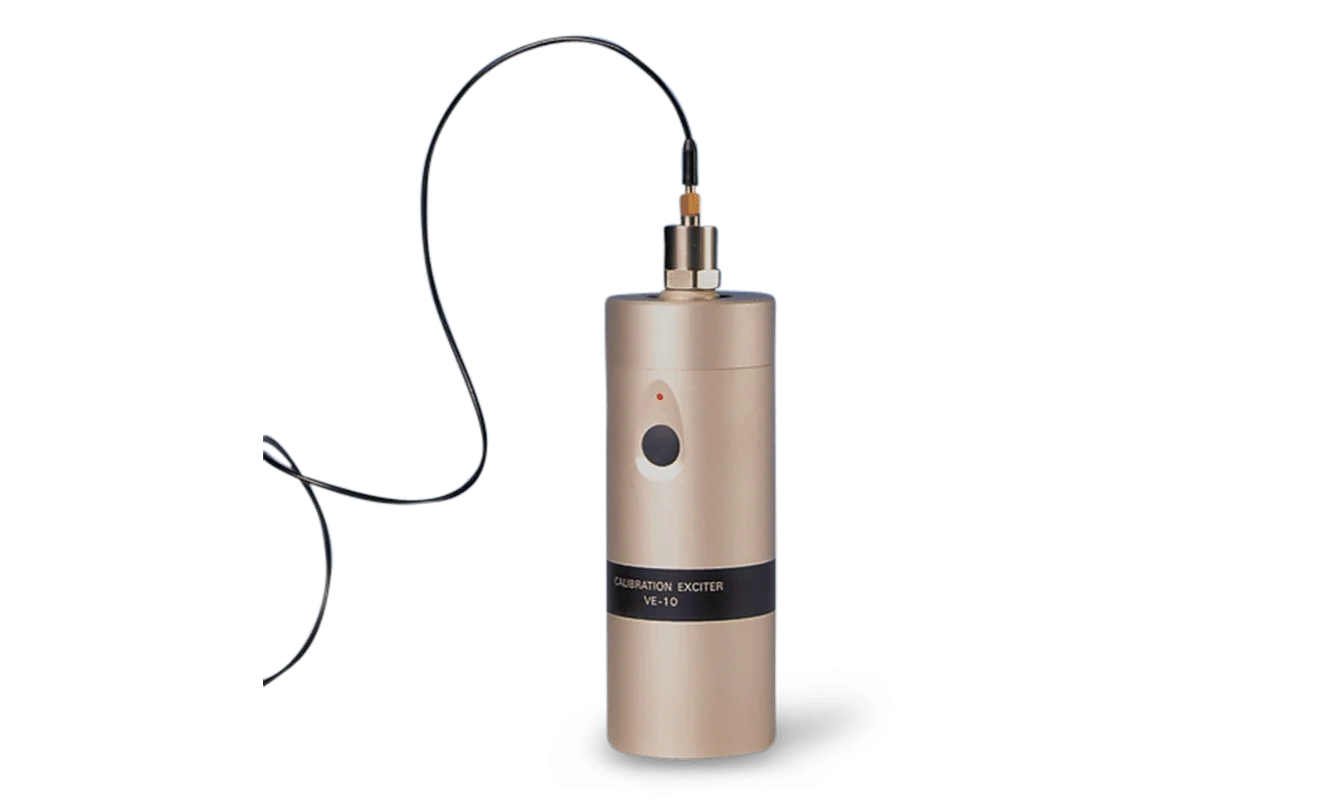

Rion VE-10 Portable Vibration Calibrator/Exciter

Simple vibration calibrator for accelerometers of up to 70g weight.


FEATURES & BENEFITS

  • Sinusoidal calibration signal at 159.2 Hz
  • Acceleration 10 ms-2 (rms) ± 3%
  • Velocity 10 mms-1 (rms) ± 4%
  • Displacement 10 µm (rms) ± 5%
  • Simple button press operation with auto-stop after 1 minute
  • LED indicates whether level has stabilised
  • Simple sensitivity checking for the entire measurement chain

PRINCIPAL APPLICATIONS

  • Automotive Vibration
  • Product Testing
  • Industrial Machinery Vibration
  • Quality Control
  • Condition Monitoring
  • Test and Measurement

MORE INFORMATION

FULL SPECIFICATION
PURCHASE ENQUIRY
HIRE ENQUIRY
PURCHASE & HIRE ENQUIRY

Product Description

The VE-10 is great for checking the calibration of a measurement chain. The typical scenario is that you have input the accelerometer sensitivity into the system and you’re pretty certain that what you’re reading is correct but there’s no substitute for checking the system calibration by applying a known vibration level at a specific frequency.

This clever, small and portable (600g), battery-powered device incorporates a feedback system that ensures that the effective mass of the transducer is taken into account and that the vibration level is within the tight tolerances of the instrument’s specifications.

We have a wide range of vibration meters and vibration monitoring products for sale or to hire.
